12v adapters with 4 plugs GEO061DA-1205

12v adapters with 4 plugs GEO061DA-1205
Loading...
  • 12v adapters with 4 plugs GEO061DA-1205
Product name : 12v adapters with 4 plugs GEO061DA-1205
Product No. : GEO061DA-1205

Details:

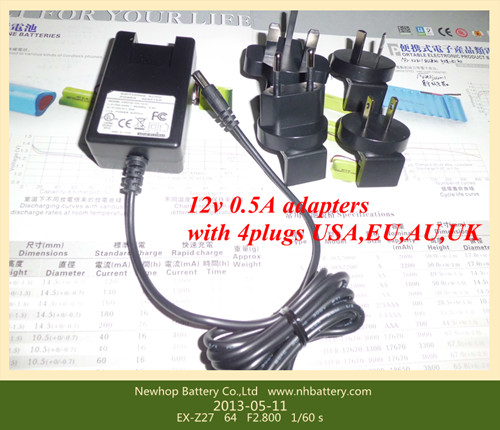

GEO061DA-1205 12v adapters with 4 plugs for England,Austrial,Europe,USA.
1.INPUT REQUIREMENT
ITEM  SPECIFCATION  MIN  TYP.  MAX
NORMAL AC INPUT VOLTAGE  SINGLE PHASE  100Vac 110Vac/220Vac  240Vac
AC INPUT VOLTAGE RANGE  SINGLE PHASE  90Vac 110Vac/220Vac  264Vac
AC INPUT FREQUENCY  SINGLE PHASE  47Hz  50/60Hz  63Hz
AC INPUT CURRENT  TYPICAL INPUT VOLTAGE& OUTPUT AT FULL LOAD.      200mA
AC INRUSH CURRENT  TYPICAL INPUT VOLTAGE& OUTPUT AT FULL LOAD , 25℃     30A
EFFICIENCY  TYPICAL INPUT VOLTAGE& OUTPUT AT FULL LOAD  65%

2.OUTPUT SPECIFICATION
ITEM  SPECIFCATION  MIN  TYP.  MAX
NORMAL DC OUTPUT VOLTAGE      12Vdc
DC OUTPUT VOLTAGE RANGE  TYPICAL OUTPUT VOLTAGE ±5% 11.4V   12.6V
LOAD CURRENT RANGE   0.1A   0.50A
PEAK LOAD CURRENT TIME<60S      0.80A
RIPPLE TYPICAL INPUT VOLTAGE , TYPICAL LOAD CURRENT , 25℃      120mV
HOLD-UP TIME  AT TYPICAL INPUT VOLTAGE AND FULL LOAD  10mS
TURN-ON DELAY  TYPICAL INPUT VOLTAGE AND TUP LOAD CURRENT      3S
OVER CURRENT PROTECTION  AUTO RECOVERY
SHORT CIRCUIT PROTECTRON  THE ADAPTER SHALL NOT DAMAGE BY SHORT THE DC OUTPUT TO GROUND
OVER VOLTAGE PROTECTION      13.8V 16.0V
